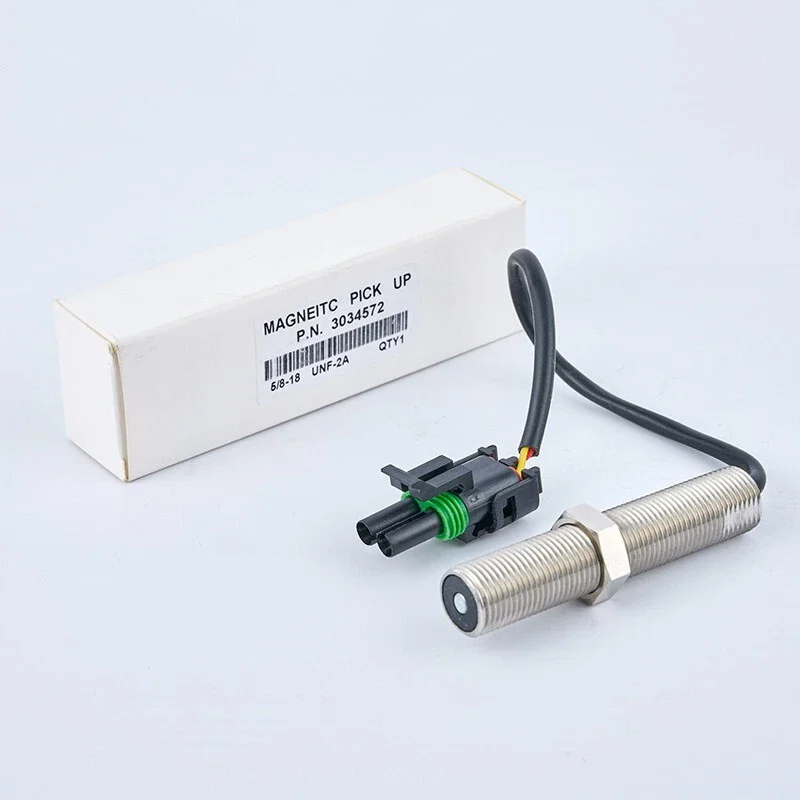

Replacement Part Number: 3034572, 3251812
Specification:
Measure range: 50-5000Hz
Inductance: 142MH+25%
Thread Size: 5/8-18 UNF-2A
Tap Drill Size: 37/64 inch
Proximity to Gear Teeth: .028 in min. – .042 in max.(Approximately 1/2 to 3/4 turn)
Temperature Range: -55 deg C to 105 deg C
Output at Cranking Speed: 1.5 volts AC minimum
Maximum Output: 30 volts AC
Coil Resistance: 300 ohms maximum
Fit for Cummins Engine:
K19, K38, K50, M11 MECHANICAL, N14 CELECT, N14 MECHANICAL, NH/NT 855,
QSK19 CM500, QSK19 CM850 MCRS, QSK38 CM850 MCRS, QSNT14 CM876 N103, V28
Delivery Time: 3-5 days
Package: Neutral/ Customized package
MOQ: 2 pcs
