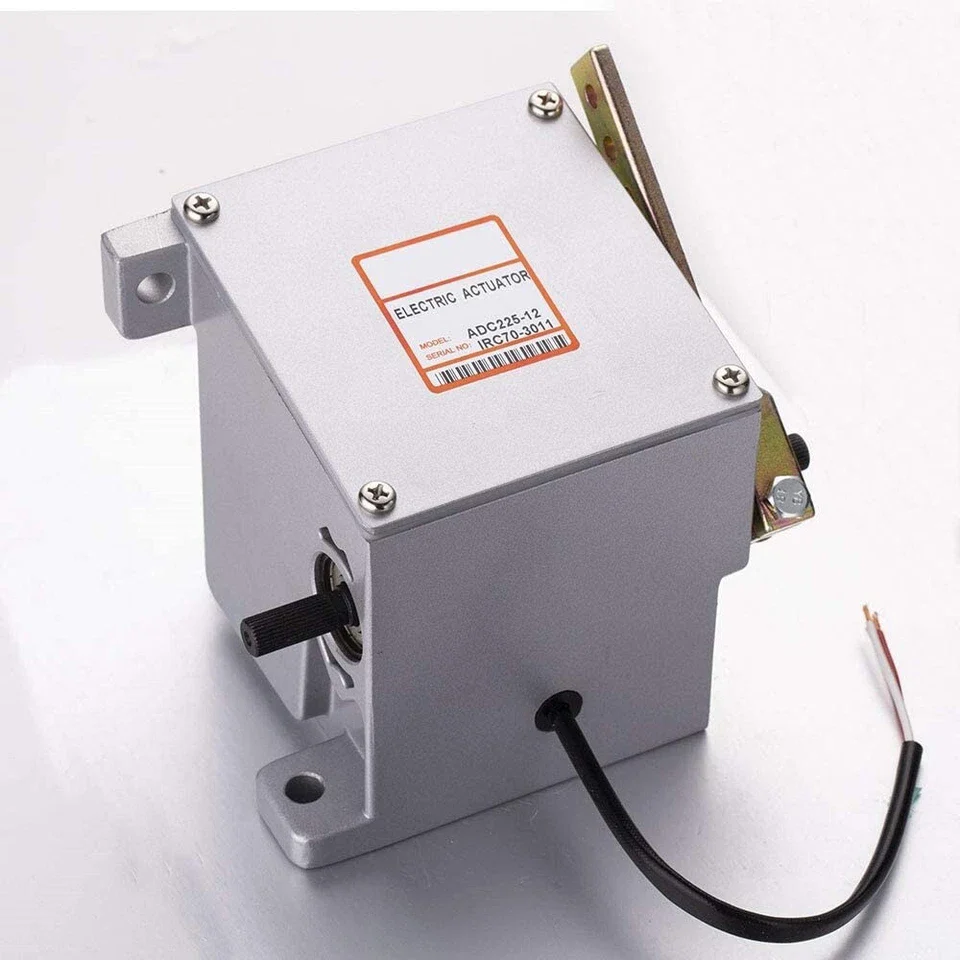

Replacement Part Number: ADC225, ADC225S-24, ADC225S24
Performance:
Available torque: Max2.2Lb-ft (2.7Nm)
Maximum operating shaft angular travel: 25+1degree CW/CCW
Power input:
Operating voltage: 24VDC
Normal operating current: 3 A at 12VDC, 1.5 A at 24VDC
Maximum current continuously rated: 8 A at 12VDC, 4 A at 24VDC
Environmental:
Temperature Range: -54 to 95
Relative Humidity: up to 100%
All surface finishes fungus proof and corrosion resistant
Physical:
Weight: 3.5 kg
Mounting: Any position, electrical connector at the top preferred
Reliability:
Vibration: up to 20G @50-500 Hz
Testing: 100% Tested
Delivery Time: 3-5 days
Package: Neutral/ Customized package
MOQ: 2 pcs
